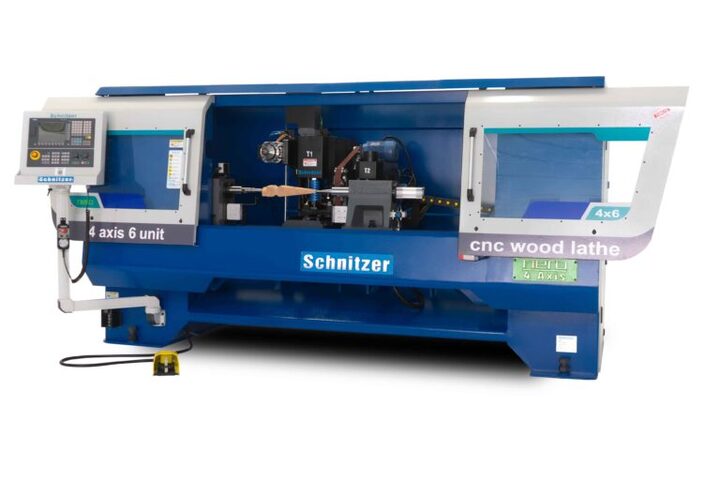

CategoryCNC Lathe
LocationBursa
Do you have questions about this product?
PRODUCT FEATURES
Control Unit : Siemens
Maximum Square : 160x160 mm I Maximum Diameter 400 mm
Maximum Length : 1200 mm I Minumum Height 20 mm
Long Axes Speed : 70.000 mmlmin
Short Axes Speed : 40.000 mmlmin
Y Axes Speed : 30.000 mmlmin
Working Power 23 kW.
X Axes : 1.5 kW. Absolute Encoder Servo Motor
Y Axes : 1 kW. Absolute Encoder Servo Motor
Z Axes : 0,75 kW. Absolute Encoder Servo Motor With Brake
A Axes : 3,7 kW. 6000 Rpm Absolute Encoder Servo Motor Spindle
B Axes : 0,75 kW. Incremental Encoder Servo Motor
Weight : 3700 Kg.
Part Centering : Festo
Linear Motion System : CMSA
Compression Part : Pesto
Centering Units : Manuel
Automatic Lubrication : Schnitzer
Spindle Motor : Olispeed 24.000 Rpm 6 kW.
