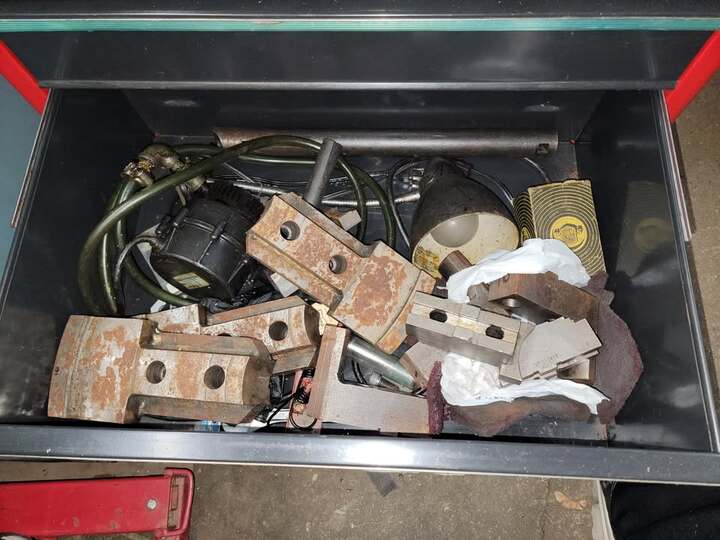

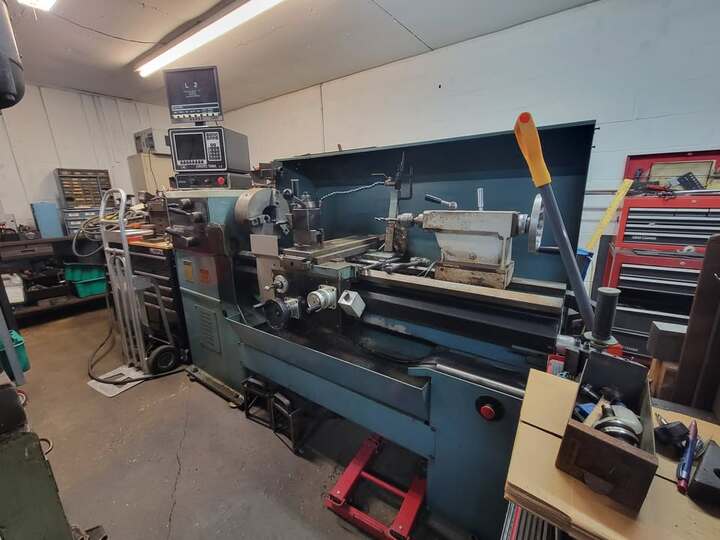

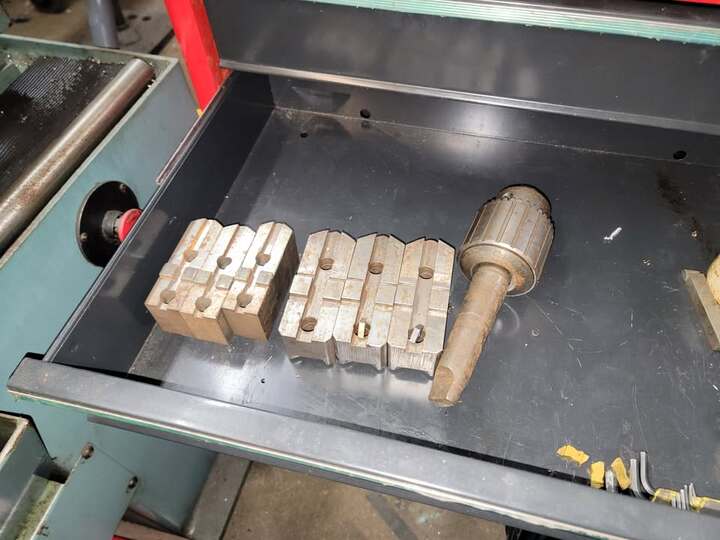

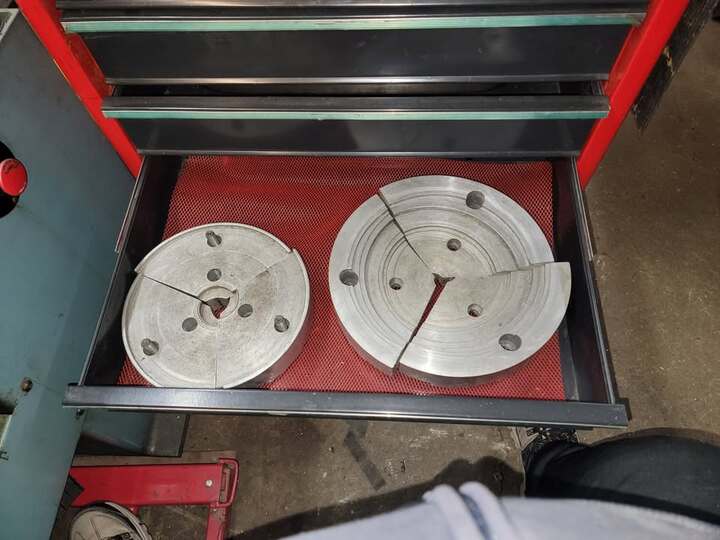

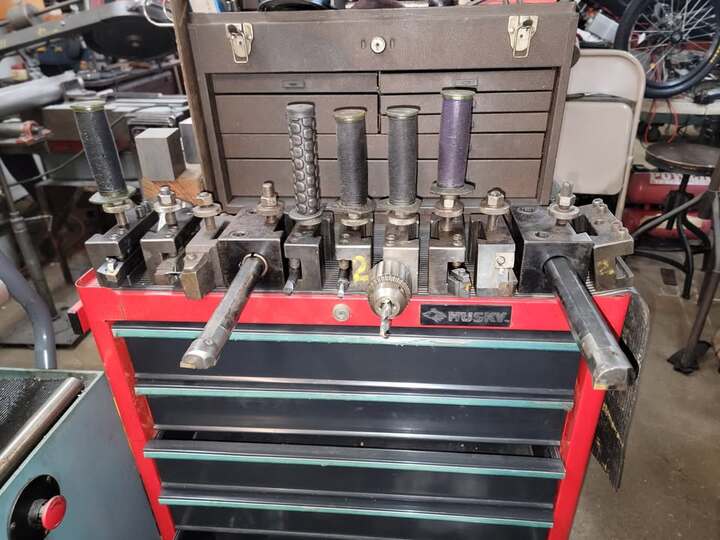

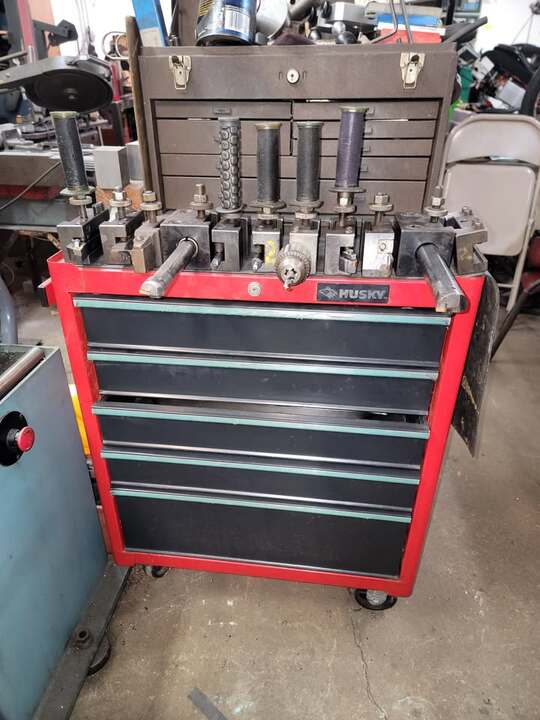

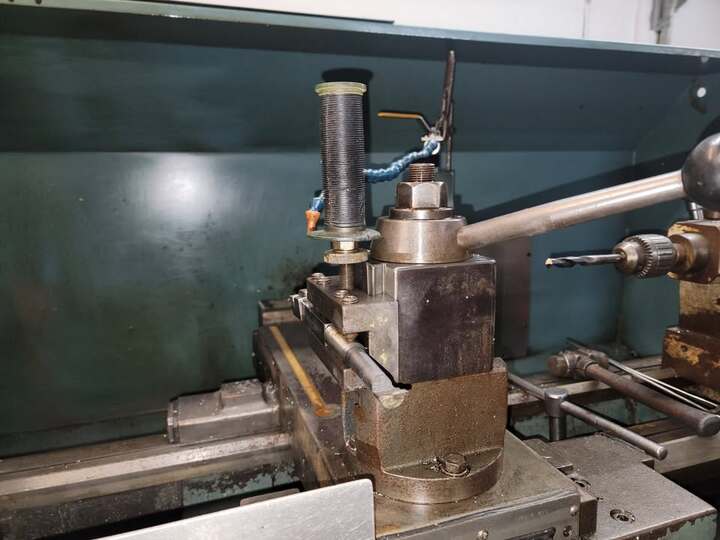

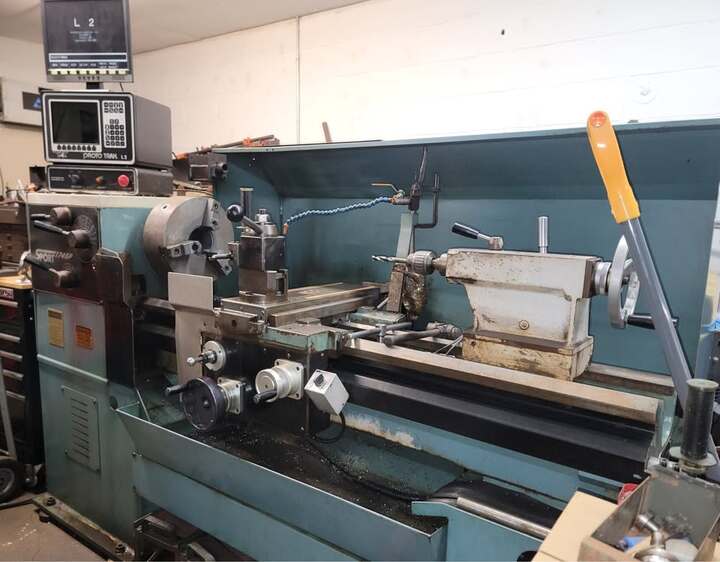

Updated Price reduced with more pics loaded with tooling and tool cart on wheels. Up for a quick sale is a 1745 Proto Trak CNC Lathe, conversational programing. Putting her up for a reduced $5500.00 way below market value. I paid $14000.00 for this 6 years ago. Currently this year range and model are selling for $11K-$15K on E-Bay, check for yourself. She served me very well, I will no longer be doing any large work. The ways are perfect on this machine and will hold size and repeatability within .0005 all day long with surprising dependency and accuracy. Comes with the 12" 3 jaw chuck seen here in great true running condition along with soft jaws and pie jaws pictured and the large Aloris quick change tool post, tool holder with a total of 12 tool holders two of which are 1-1/4" Dia. boring bar holder. Tool holders are only included not the tooling in the holders. some can be available for an additional cost.

MACHINE SPECS... Capacity:

– Height of Centers: 8-7/8″

– Distance Between Centers: 45″

– Swing Over Bed: 17- 11/16″

– Swing Over Saddle Sings: 16- 1/8″

– Swing Over Cross- Slide: 10-15/32″

– Cross- Slide Travel: 9″

– Tool Section Maximum: 1″

– Coolant: 4 Gallons

– Bed Width: 12″

– Height: 11-1/2″ Headstock:

-Spindle Nose (camlock): D1-6

– Spindle Through Hole: 2″

– Taper in Reduction Sleeve: Mt#4

– Spindle Diameter/ Front Bearing: 3.15

– Number of Spindle Speeds: 12

– Spindle Speed Range: 40-2200 Rpm

• 12" 3 Jaw Chuck
•  Motor 7.5 HP Tailstock:
•  Quill Travel: 6-1/4″
•  Quill Diameter: 2-5/16″
•  Quill Taper Hole: Mt#4
