We are selling our Studio G2 large-format 3D Printer made by BigRep. It has a reputation for being one of the best printers of this size on the market, reliable and capable. We have used it for 2 years, mainly for parts in automotive, robotics, agriculture, and marine use. It is a very capable printer and incredibly accurate.

The machine is in great condition, with all higher-wear parts being replaced recently. It prints the same as day one. It will come crated and I can help arrange shipping quotes. New G2s cost 60k, so this is a great way to add large-format printing capability to your business at a lower price point.

 Here is some more technical info below. Please reach out with any questions.

BigRep Studio G2 - Technical Specifications

The BigRep Studio G2 is a large-format FFF (Fused Filament Fabrication) 3D printer designed for industrial applications. It features a fully enclosed build chamber with a controlled environment for enhanced material compatibility and consistent print quality.

Physical and Mechanical Specifications

• External Dimensions: 1715 × 1170 × 1765 mm (W × D × H)

• Weight: Approximately 440 kg

• Frame Material: Aluminum and steel construction

• Enclosure: Fully enclosed, temperature-controlled build chamber with a filtered ventilation system (including an air filtration unit)

Build Volume

• XYZ Build Area: 1000 × 500 × 500 mm

• Heated Print Bed: Yes, steel print surface with kapton sheet for adhesion

• Max Print Bed Temperature: Up to 100°C

• Auto Bed Leveling: Semi-automatic bed leveling

Extruder System

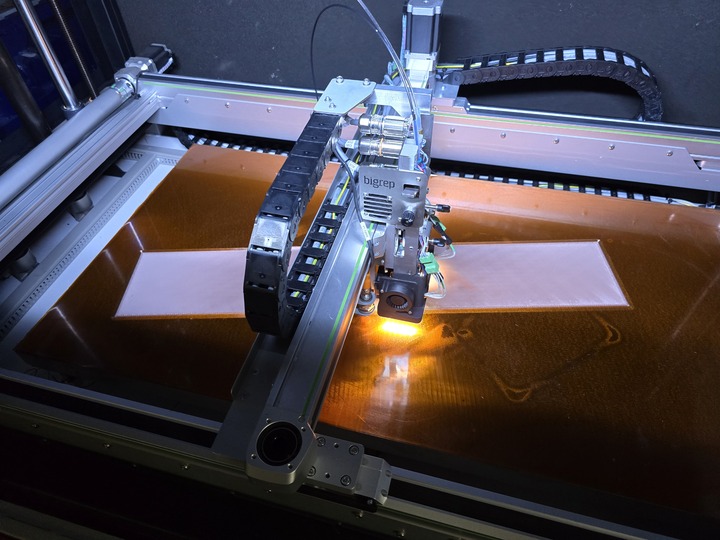

• Extruder Type: Dual direct-drive extruder

• Nozzle Diameter: Standard 0.6 mm (compatible with 0.4 mm and 1.0 mm nozzles)

• Max Extruder Temperature: Up to 300°C

• Filament Diameter: 2.85 mm

• Compatible Materials: PLA, PETG, TPU, ABS, ASA, PA, Carbon-Fiber-Reinforced, and other engineering-grade filaments

Motion System

• Linear Motion: Precision lead screws for all axes

• Drive Mechanism: High-precision stepper motors

• Print Speed: Up to 100 mm/s (recommended operational speed varies based on material)

• Layer Resolution: 100 – 400 microns

• Cooling System: Integrated part cooling fan

Electronics and Software

• Control Interface: 7-inch touchscreen with an intuitive UI

• Connectivity: USB, Ethernet, Wi-Fi

• Software Compatibility: BigRep BLADE (proprietary slicing software), compatible with third-party slicers like Cura and Simplify3D

• File Formats: STL, OBJ, G-code

• Operating System Compatibility: Windows, macOS, Linux

Power and Environmental Requirements

• Power Supply: 208V–240V, 16A, 50/60 Hz

• Power Consumption: Approx. 2.2 kW

• Operating Temperature: Recommended 15–30°C

• Humidity: <70% non-condensing

Additional Features

• Filament Detection: Yes, with run-out sensor

• Resume on Power Loss: Yes

• Safety Features: Enclosed build chamber, HEPA filtration, emergency stop function

This printer is designed for prototyping, tooling, and end-use part production in various industrial applications. Let me know if you need additional details or modifications.
