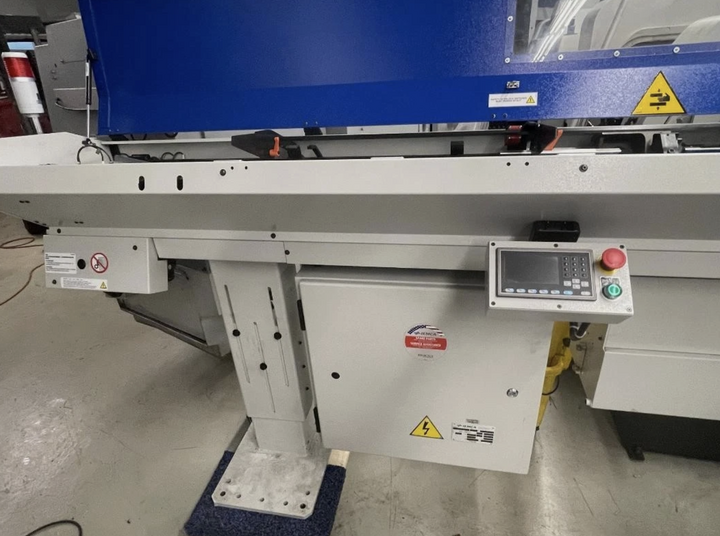

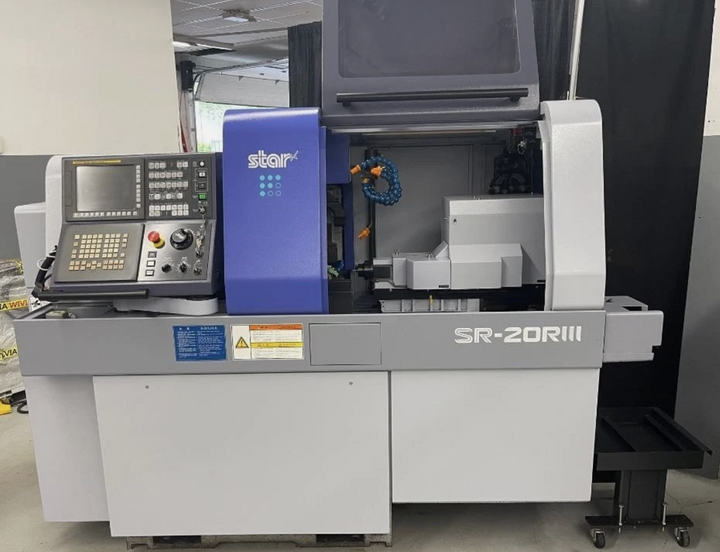

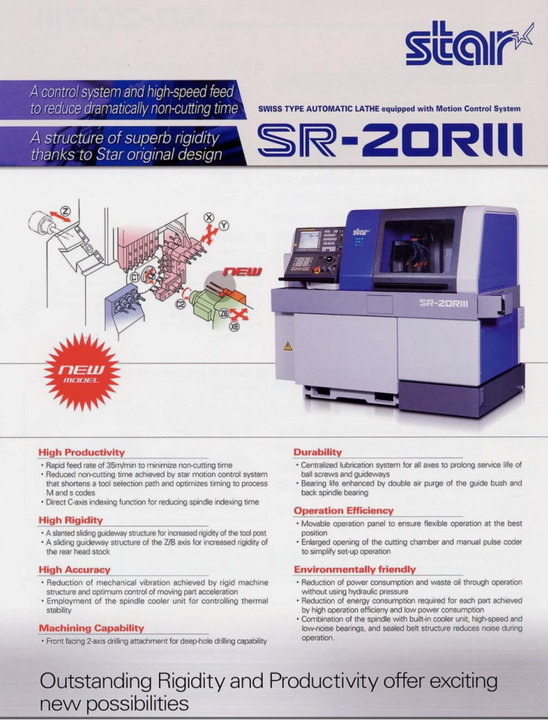

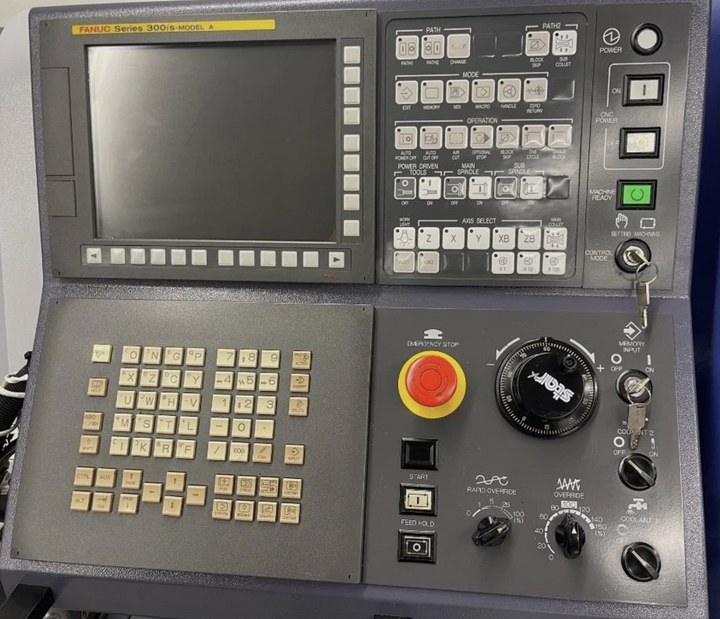

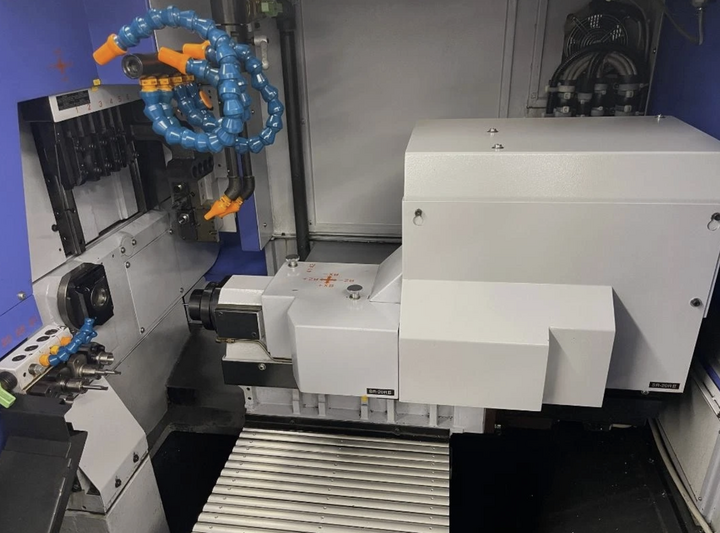

Up FOR SALE is a MINT CONDITION - 2009 STAR SR-20RIII SWISS TYPE CNC SCREW MACHINE- ( 3,000 Hours), used and completely gone through (8/25), sliding headstock lathe. This machine was primarily used in a prototype shop at a medical facility and did not get a barfeeder installed on it until 2021/22. This machine offers precision and reliability for machining complex parts up to a maximum 20 mm turning diameter. Equipped with a FANUC FS 300 IS control unit (1 YEAR WARRANTY) Equipped with 2020 Iemca Ideal 326 Magazine Barfeeder this machine is near NEW Condition with approximately 3,000 cutting hours. And will Come with a 1 YEAR Warranty on the Fanuc Components. This machine is being offered for alot less less than 1/2 of the LIST price.Headstock stroke 205 mm. 20mm Max Bar Capacity, Rapids up to 35 m/min. Tool stations include 6 fixed Turning OD tool holder, 5 Live Cross working Positions and 4 Front End Facing Positions for drilling/tapping, 2 Position Long Drilling next to Sub Spindle for Main spindle work. And 4 Live Tool Positions on the Sub-spindle side which allow versatility in processing. The motorized Live Spindle units supports a maximum speed of 8,000 rpm with a power of 1.2 kW.The lathe is equipped with, C-Axis Main and Sub., Parts Conveyor and Magazine Barfeeder.High Pressure, Mist Collector and any other accessories can also be added at an additional cost.Year 2009 Manufactured in 07/2008 Installed in 2010 (Gone through in 8/2025)

• Fanuc 1 Year Warranty
• Max. diameter turnable = mm. 20
• Max. travel of sliding headstock= mm. 205
• Fixed tool = M 8 x 1.25
• Rotating tool on comb slide = M 6×1
• End mill on slide = Ø 10- Spindle hole diameter = Ø 20
• Spindle revolutions = rpm. 500/8.000
• Power available = 5hp/3hp Kw 2.2 /1.5
• Collet System = TF25- Max grip and passage diameter = Ø 20mm
• Max piece length with front ejection = 80mm
• Rapid axis advances = m/min. 35
• C-axis Std fixed turning tools = 6
• Std tool shank dimensions = 12x12mm
• Live Cross Tools = 5
• Max. speed of motorized units = 8,000 rpm
• Max. power available = Kw 1.2
• Fixed drilling/tapping tool holders = 2
• Max. clamping diameter with ER16 collet= Ø 10
• Max drilling capacity (c45 steel) = Ø 8
• Max tapping capacity (c45 steel) = M 8 x 1.25
• Max. clamping diameter with er 16 collet = Ø 10
• Max drilling capacity = Ø 8Max hole depth = 100 mm
• Fixed drilling/tapping tool positions 4 main spindle
• Tank capacity = 45 Gallons- Check coolant level standard
• Max heightm 1,70- Max. floor space requirements = 7.5ft x 4ft
• Machine weight = 4,850 Lbs- Total installed power = KvA 10
