2005 Haas MDC-500

Used

Interested in this machine?

This seller has been contacted 0 times in the last week

Description

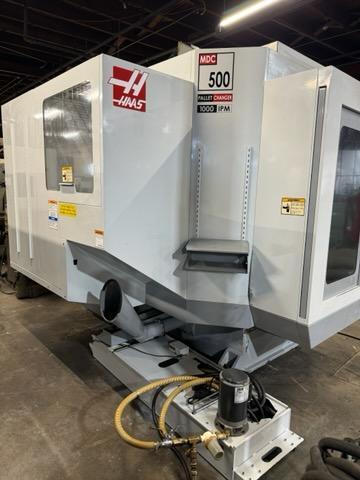

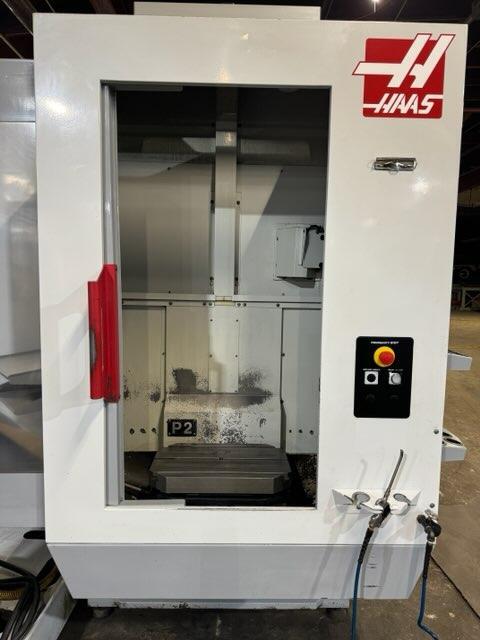

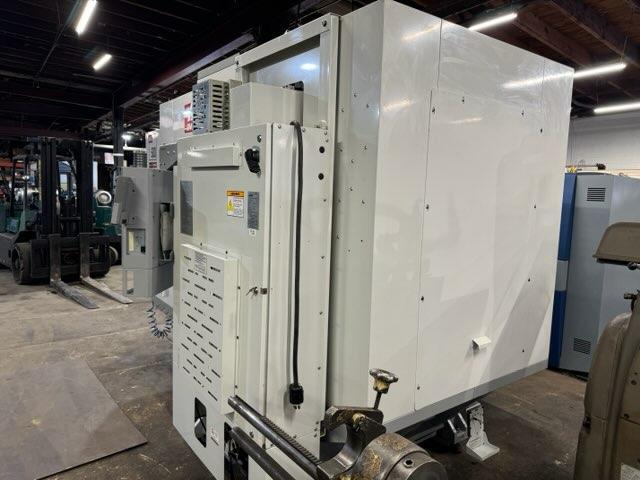

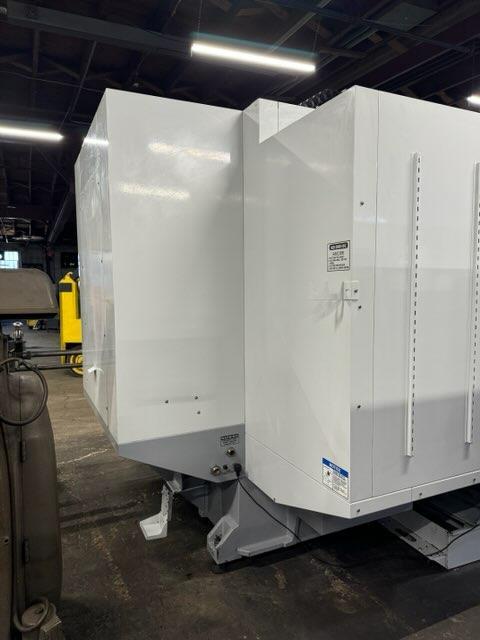

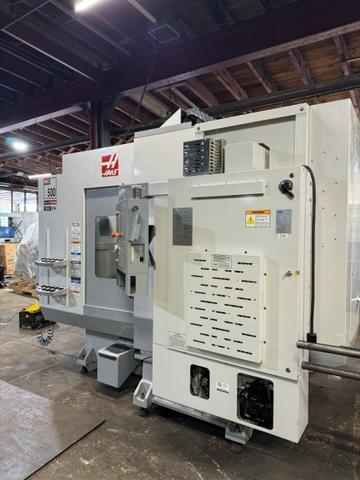

2005 Haas MDC-500,
Vertical Machining Center


SPECIFICATIONS:

TABLE LENGTH                           20"
TABLE WIDTH                             12.75"
NUMBER OF PALLETS                 2
TABLE CAPACITY                     700 lb
X-AXIS TRAVEL                          20"
Y-AXIS TRAVEL                          14"
Z-AXIS TRAVEL                          20"
SPINDLE SPEED                   8,000 RPM
SPINDLE MOTOR                     20 hp
SPINDLE TAPER                     CAT 40

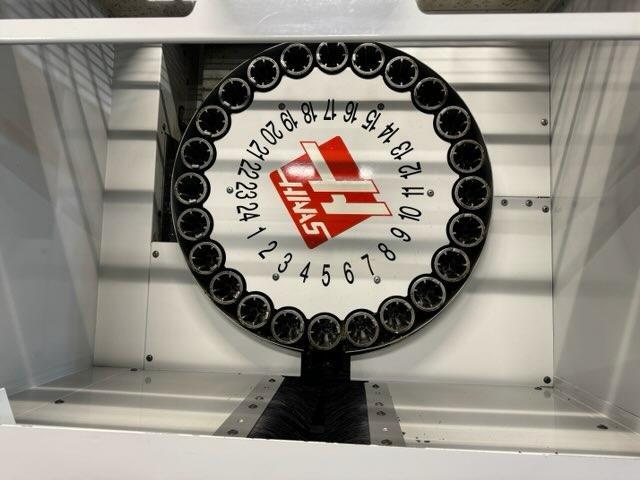

TOOL CAPACITY (ATC)             24
RAPID TRAVERSE - X AXIS  1,000 in/min.
CUTTING FEEDRATE               500 ipm



APPROX MACHINE WEIGHT 16,000 lb
APPROX MACHINE DIMENSIONS 133" x 105" x 101"



Equipped With:


Rigid Tapping
Chip Auger
1MB Memory
Programmable Coolant
Pallet Changer
1000 IPM
