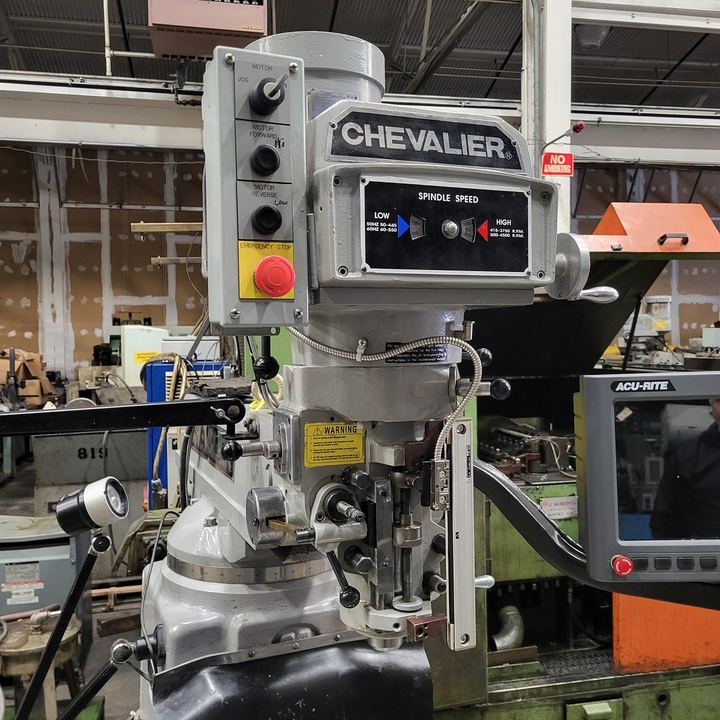

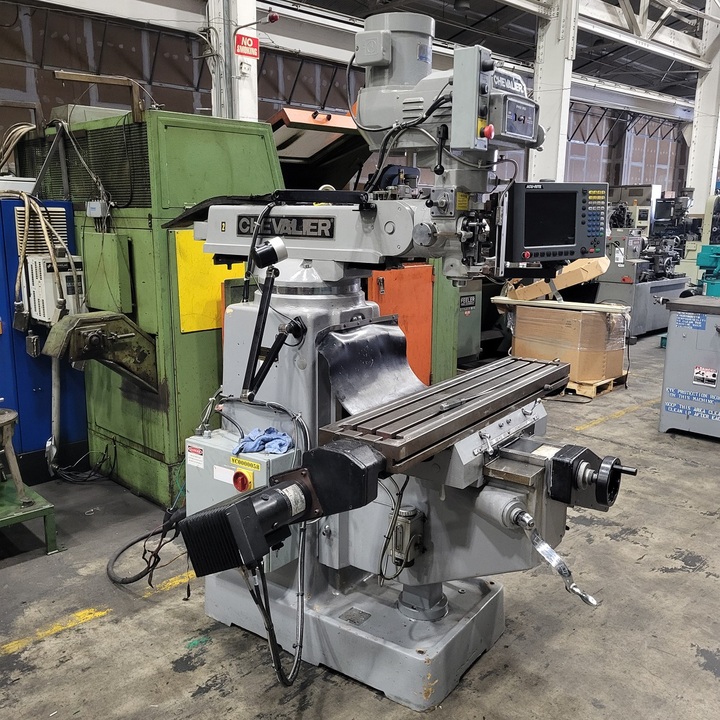

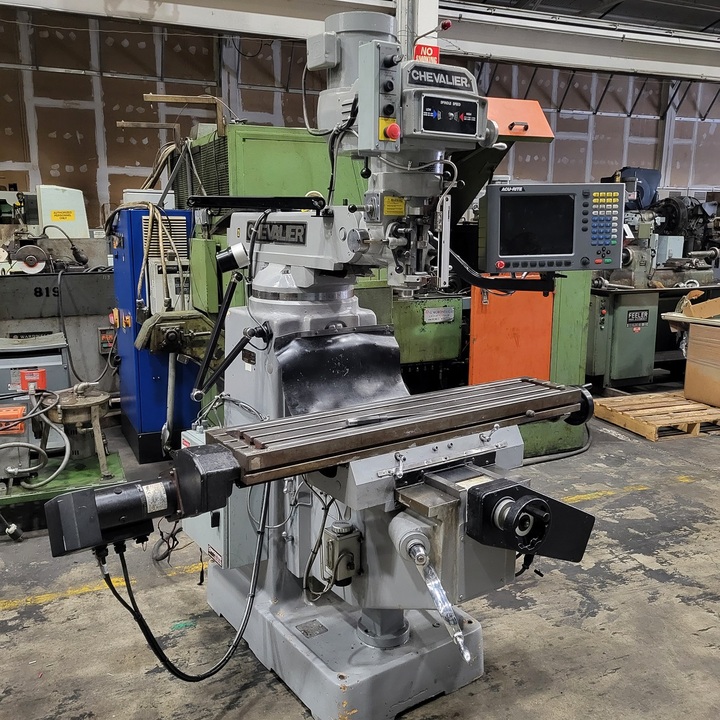

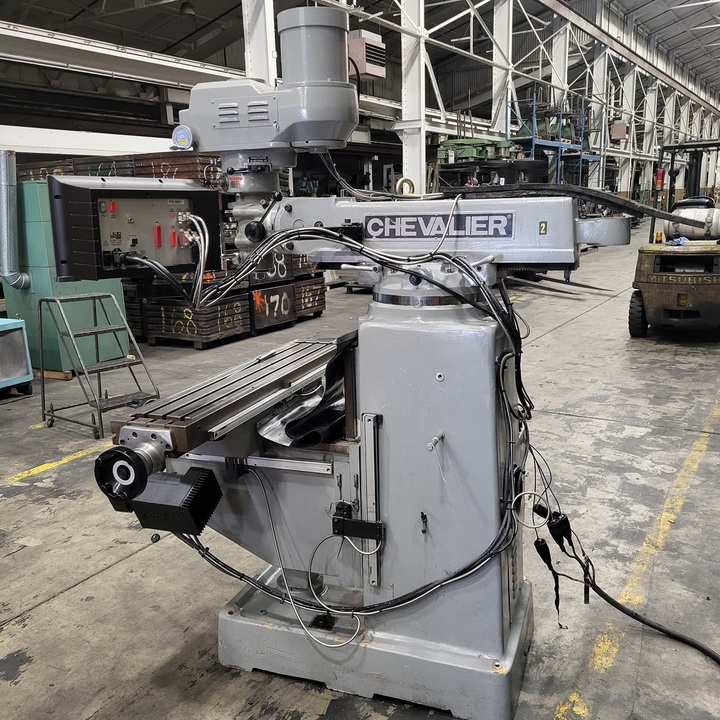

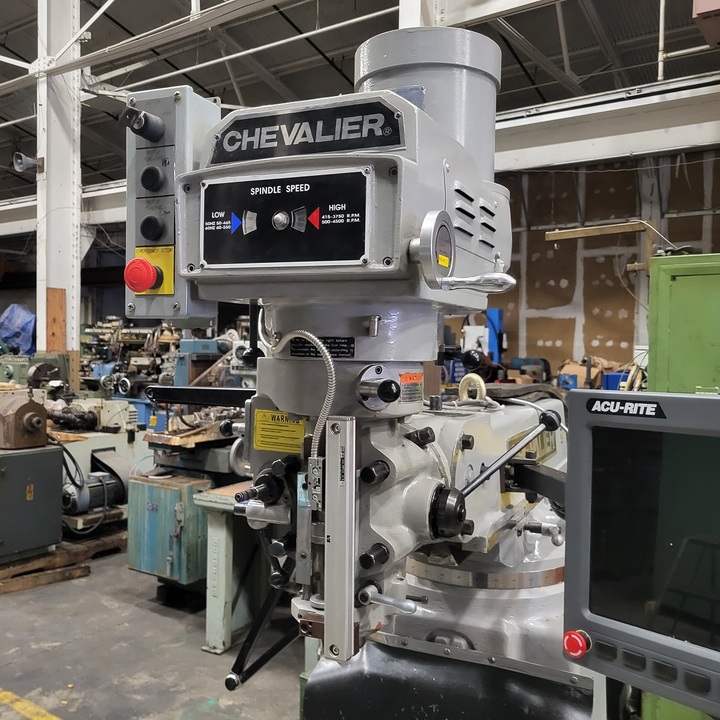

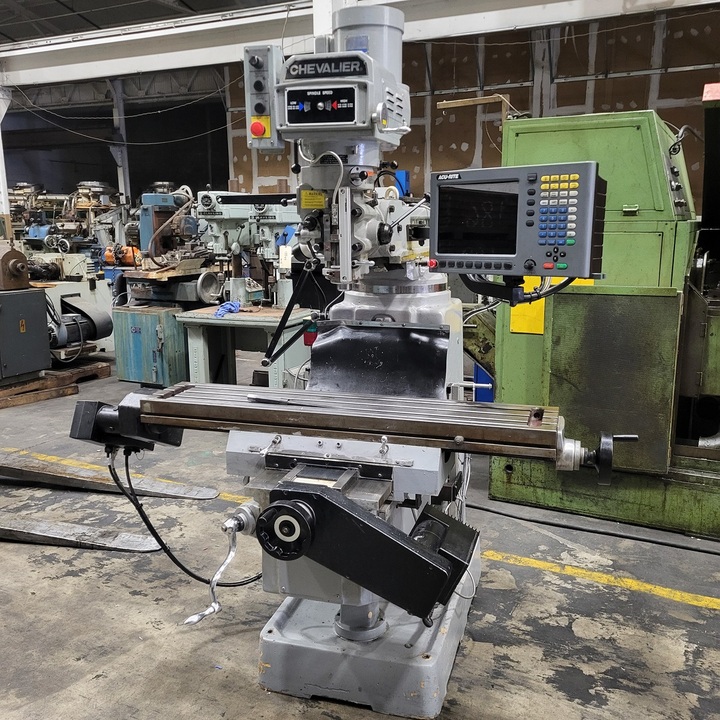

Chevalier 2 Axis CNC Milling Machine w/ Auc-Rite G2 CNC Control (Mill Power G2)

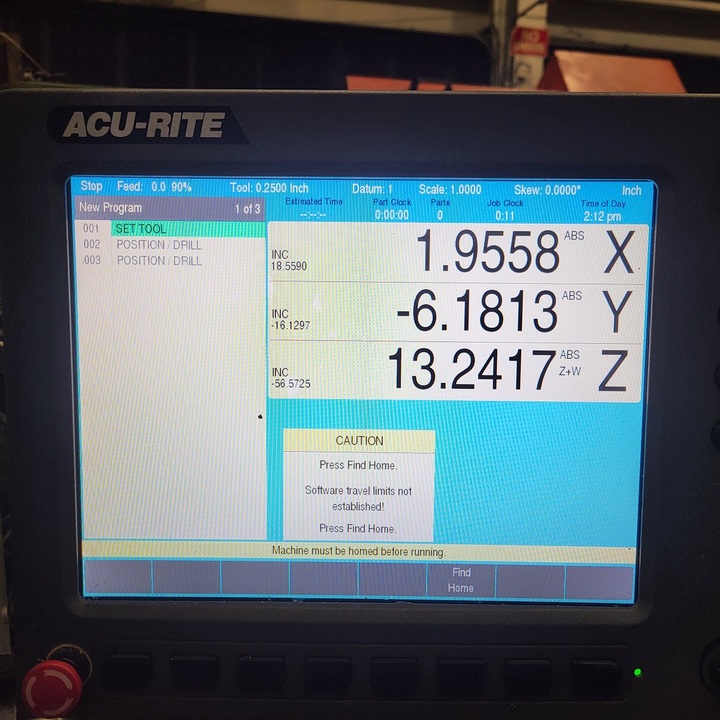

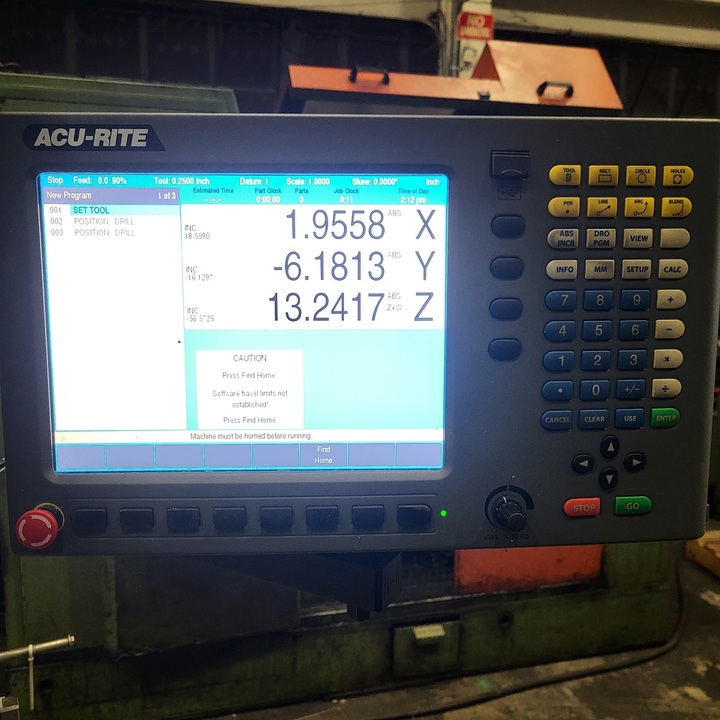

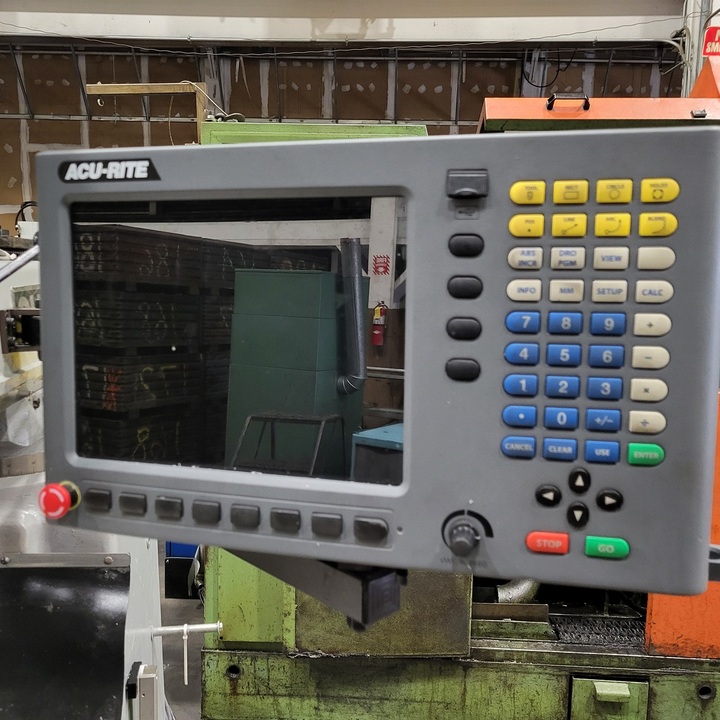

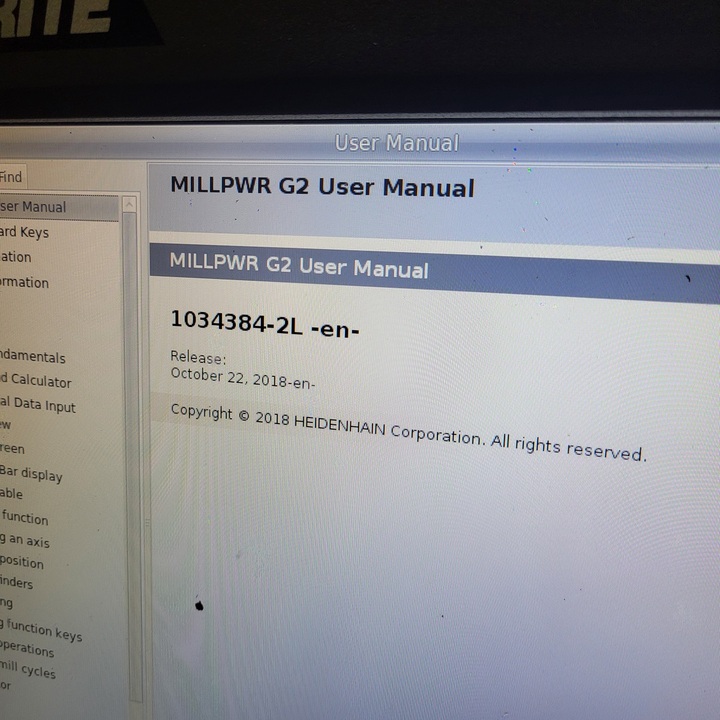

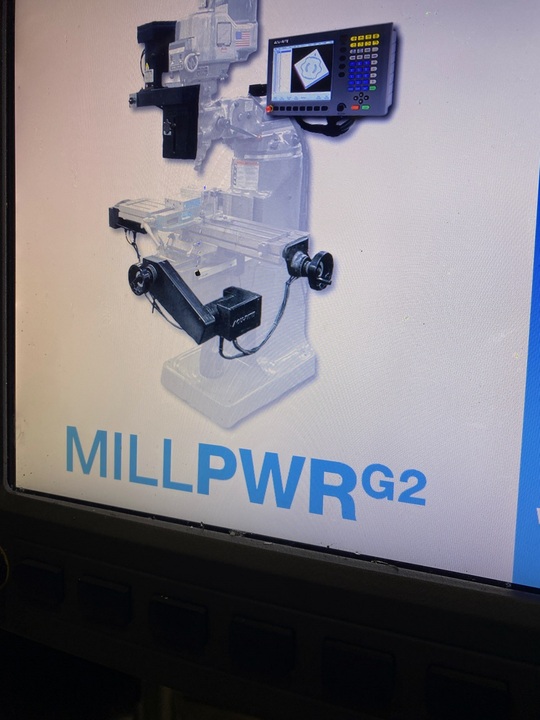

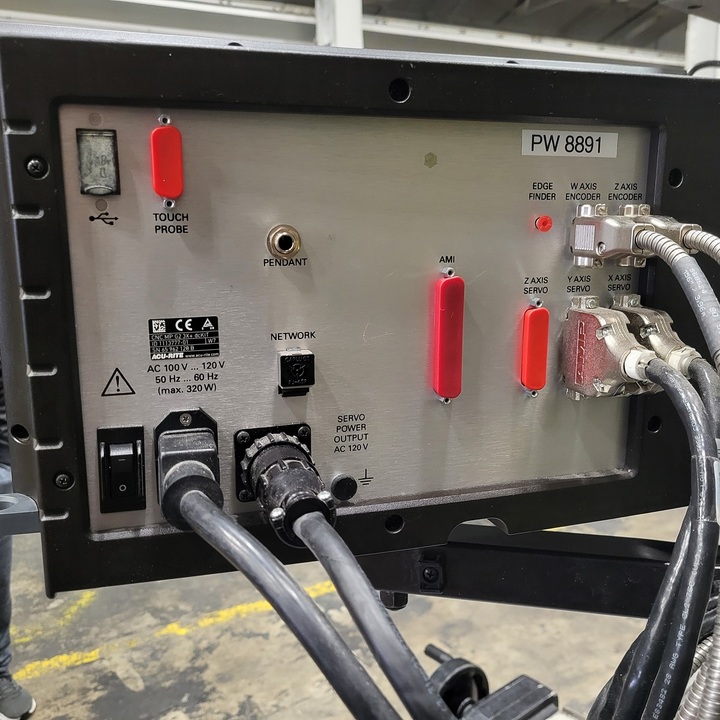

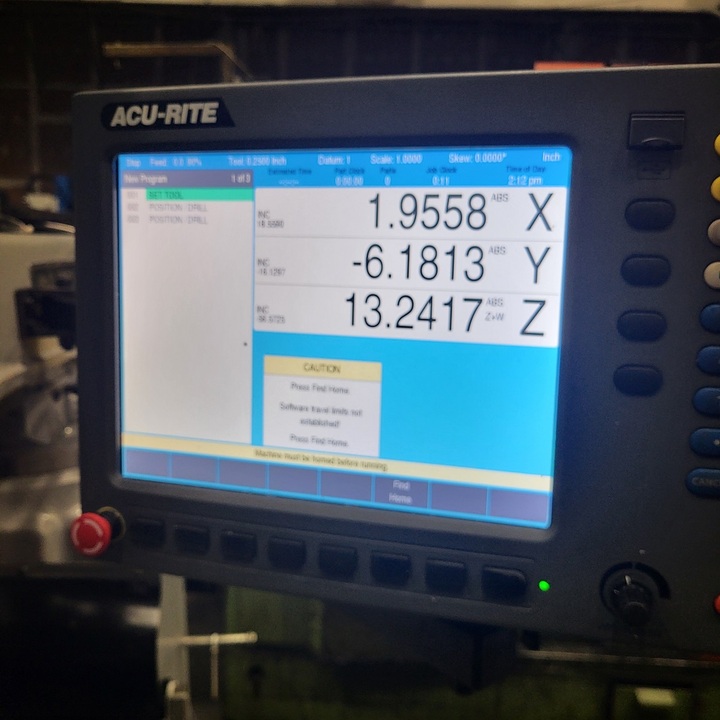

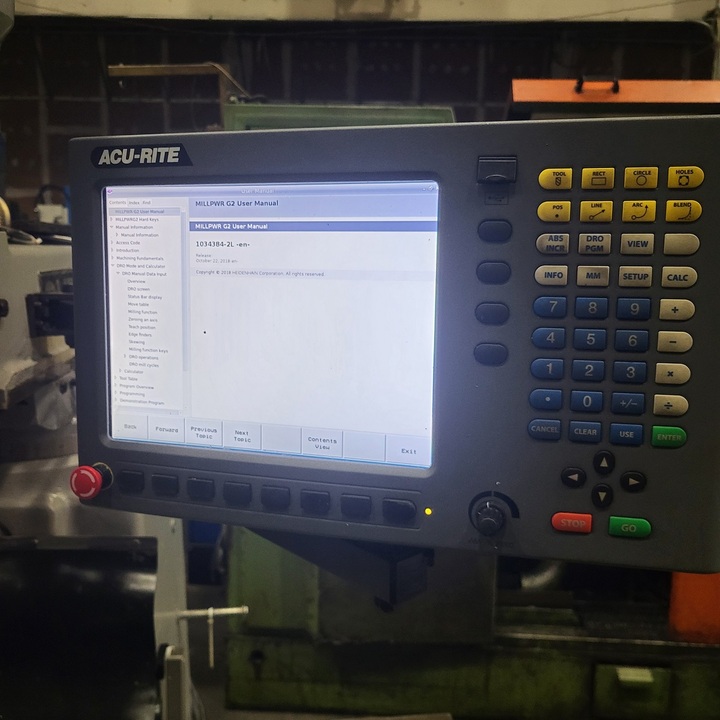

This Acu-Rite Millpower G2 Control cost over $20,000 just for the control.
Z and W Axis DRO (W axis is the knee up/down)
This machine is in excellent condition
Located in Bridgeport, CT 06607
Feel free to inspect under power.
We can load this machine onto your truck or trailer at no cost
Sold as is where is. Inspections welcomed and encouraged
I have a video that I can send. Please inquire and I can send you the link. Serious inquires only please
I can get reasonable shipping rates
Runs on 230 volts, 3 phase

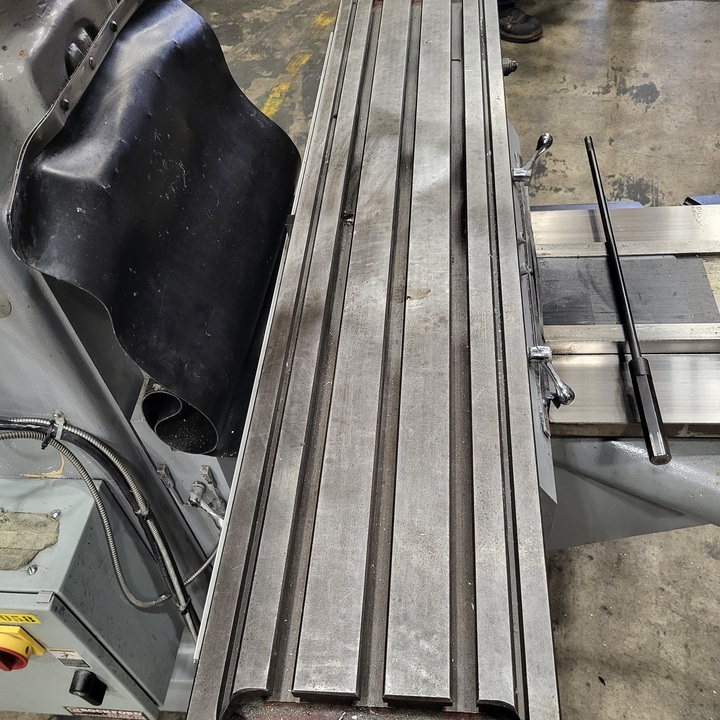

Table size: 10" x 50"
Longitudinal travel: 30"
Cross travel: 15 3/8"
Vertical travel (knee): 15" (W Axis DRO)
Table T-slots: (3) - Size 16 mm (0.63")
Maximum workpiece weight: 430 kg (946 lbs.)
Vertical spindle motor: 3 HP
Spindle speeds: 50 – 4,500 RPM
Spindle taper: R8
Spindle centerline to column surface: 4" - 25 5/8"
Quill travel: 5"
Automatic vertical feeds: (Per revolution of spindle) 0.04, 0.08, 0.14 mm (0.0015", 0.003", 0.006")
Head swivel: (R&L) 90˚ / (F & B) 45˚
Overarm travel: 21 5/8"
Overarm swivel: 360˚
One Shot lube pump (way oil)
Weights approx.: 1,520 kg (4,000 lbs.)
Floor space (W x D x H) 80" x 102" x 85"
